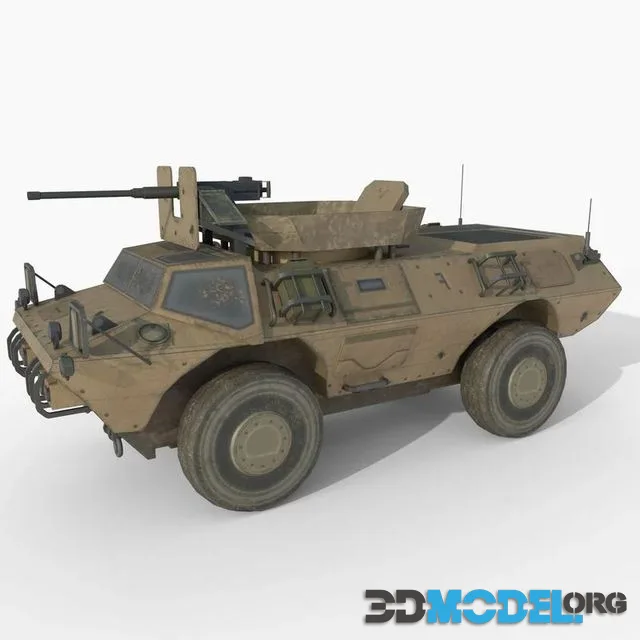

The M1117 Guardian Armored Security Vehicle Low-poly (PBR)

The M1117 Guardian Armored Security Vehicle (ASV) is a versatile, 4×4 wheeled armored vehicle developed by Textron Marine & Land Systems for the U.S. Army Military Police Corps. Designed to bridge the gap between the lightly armored Humvee and heavier infantry fighting vehicles, the M1117 offers enhanced protection, mobility, and firepower suitable for various military operations.

The M1117 features a monocoque hull constructed with an advanced modular expandable armor system, providing protection against 12.7mm armor-piercing rounds, artillery fragments, and underbody blasts from mines and improvised explosive devices (IEDs). Its V-shaped hull design helps deflect blast energy away from the vehicle, enhancing crew survivability. The vehicle is also equipped with a spall liner to reduce the risk of injury from interior fragmentation.

The ASV's primary armament includes a turret-mounted 40mm Mk 19 automatic grenade launcher and a .50 caliber M2HB machine gun, providing substantial firepower for various combat scenarios. Additionally, a 7.62mm M240 machine gun is mounted outside the gunner's hatch for supplementary defense. The turret offers 360-degree rotation with an elevation range of -10° to +60°, allowing engagement of targets at various elevations.

Powered by a 260 hp Cummins 6CTA8.3 diesel engine paired with an Allison MD3560 six-speed automatic transmission, the M1117 achieves a top speed of approximately 63 mph (101 km/h) and an operational range of around 440 miles (708 km). Its fully independent suspension system and 4×4 drivetrain enable it to navigate challenging terrains, including gradients up to 60%, side slopes of 30%, and vertical obstacles up to 2 feet high. The vehicle can ford water depths of up to 5 feet, enhancing its operational versatility.

The M1117 accommodates a crew of three: a commander, driver, and gunner. Its interior is designed for functionality and comfort, featuring climate control systems to maintain operational effectiveness in various environmental conditions. The vehicle's dimensions—approximately 6.07 meters in length, 2.56 meters in width, and 2.59 meters in height—strike a balance between protection and maneuverability.

Initially introduced in 1999, the M1117 has been deployed in various conflict zones, including Iraq and Afghanistan, where it has proven effective in convoy protection, reconnaissance, and military police operations. Its combination of protection, firepower, and mobility has made it a valuable asset in asymmetric warfare environments. Beyond U.S. service, the M1117 has been exported to several countries, including Bulgaria, Colombia, and Ukraine, where it continues to serve in various military roles.

In summary, the M1117 Guardian ASV represents a significant advancement in armored vehicle design, offering a well-rounded package of protection, firepower, and mobility that addresses the evolving needs of modern military operations.

Realistic GameReady 3d-model for any projects. PBR-textures included.
